ThinAir 102 Specifications
| Turbine type | Horizontal axis with patented teetering hub, downwind, stall regulated |
| Rotor diameter | 3.6m |
| Swept area | 10.2m2 |
| Number of blades | 1 |
| Blade material | Carbon/glass fibre epoxy hybrid |
| Rated power | 2kW |
| Rated wind speed | 10m/s |
| Cut in wind speed | 3.0m/s |
| Cut out wind speed | 20m/s |
| Rated rotation speed | 315rpm |
| Rotation speed range | 60-335rpm |
| Alternator | Permanent magnet, axial flux, 3 phase, direct drive |
| Inverter input | 180-470V DC |

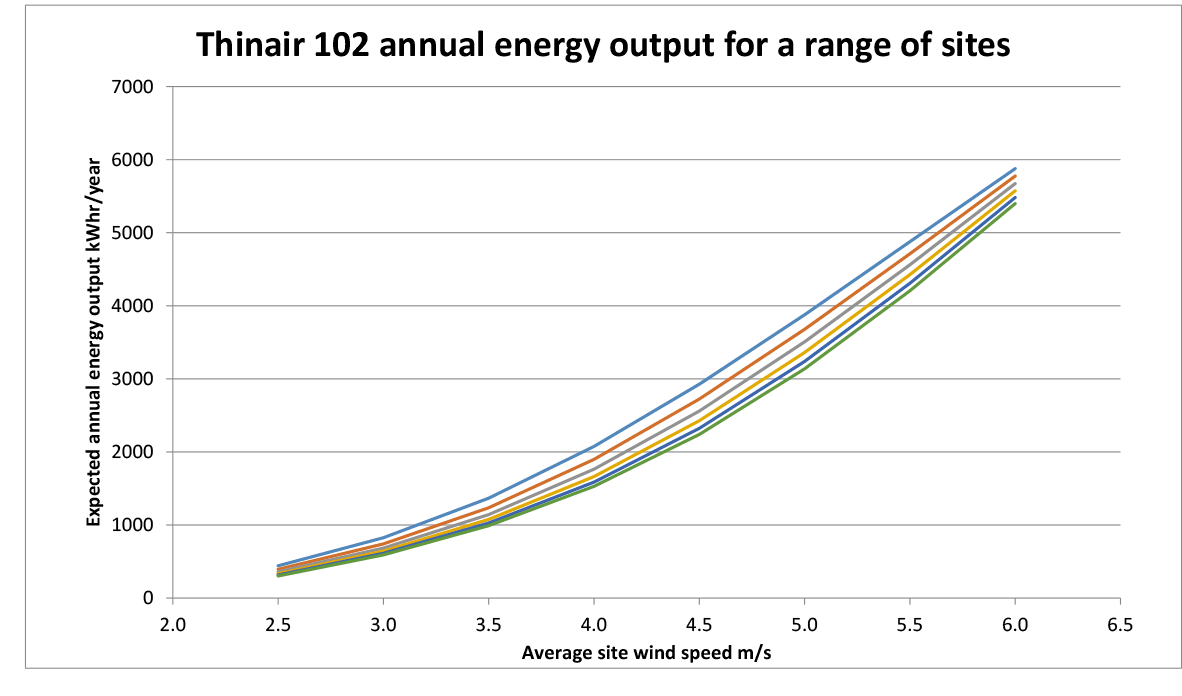

| Annual energy output at 5m/s (average wind speed) | 3137 kWh |

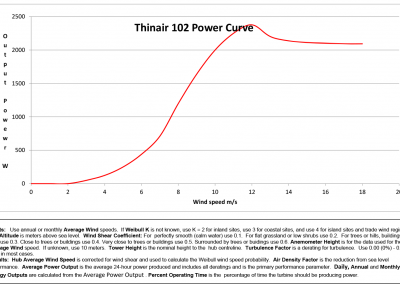

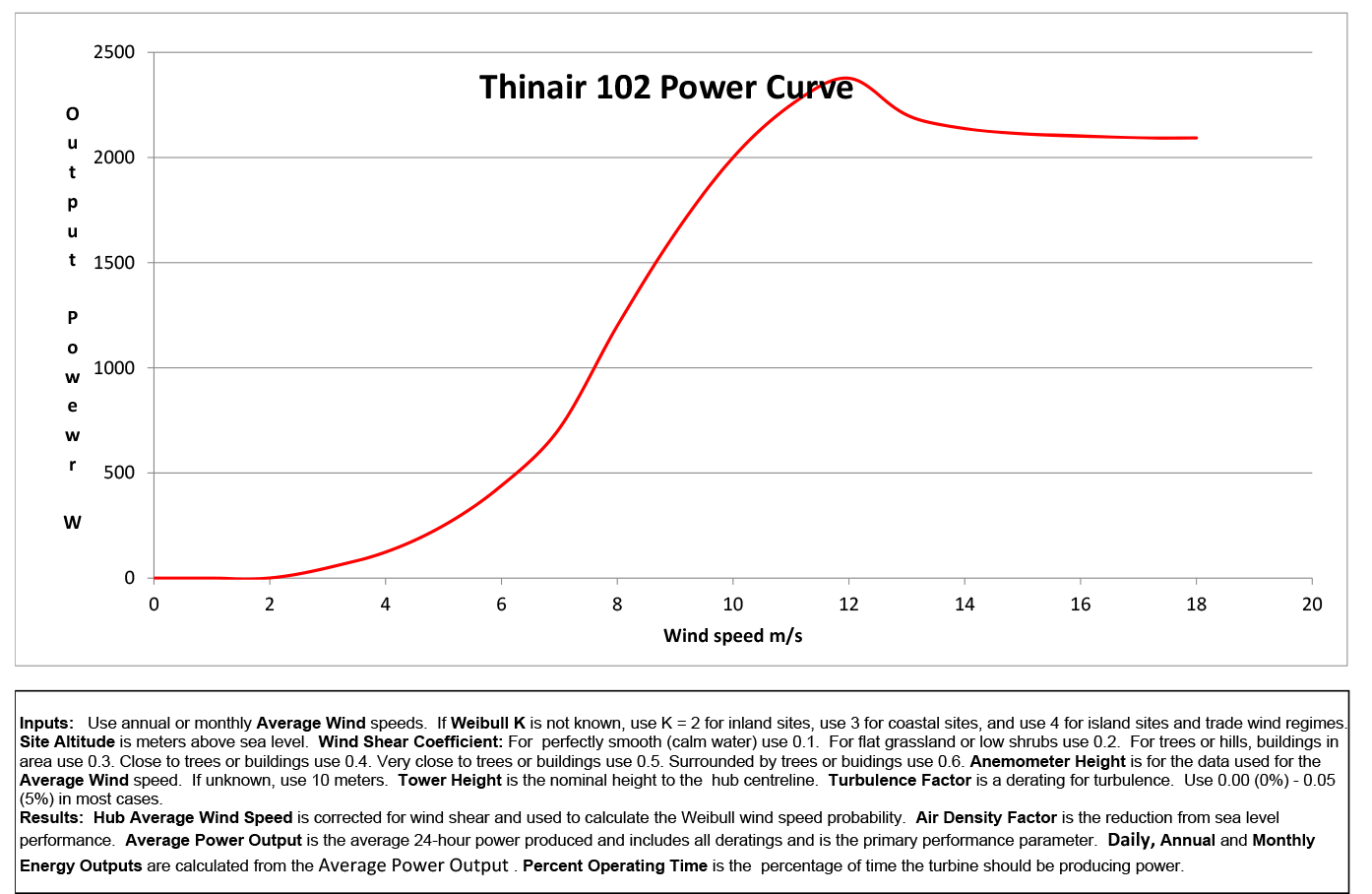

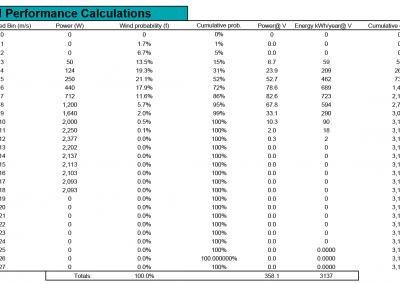

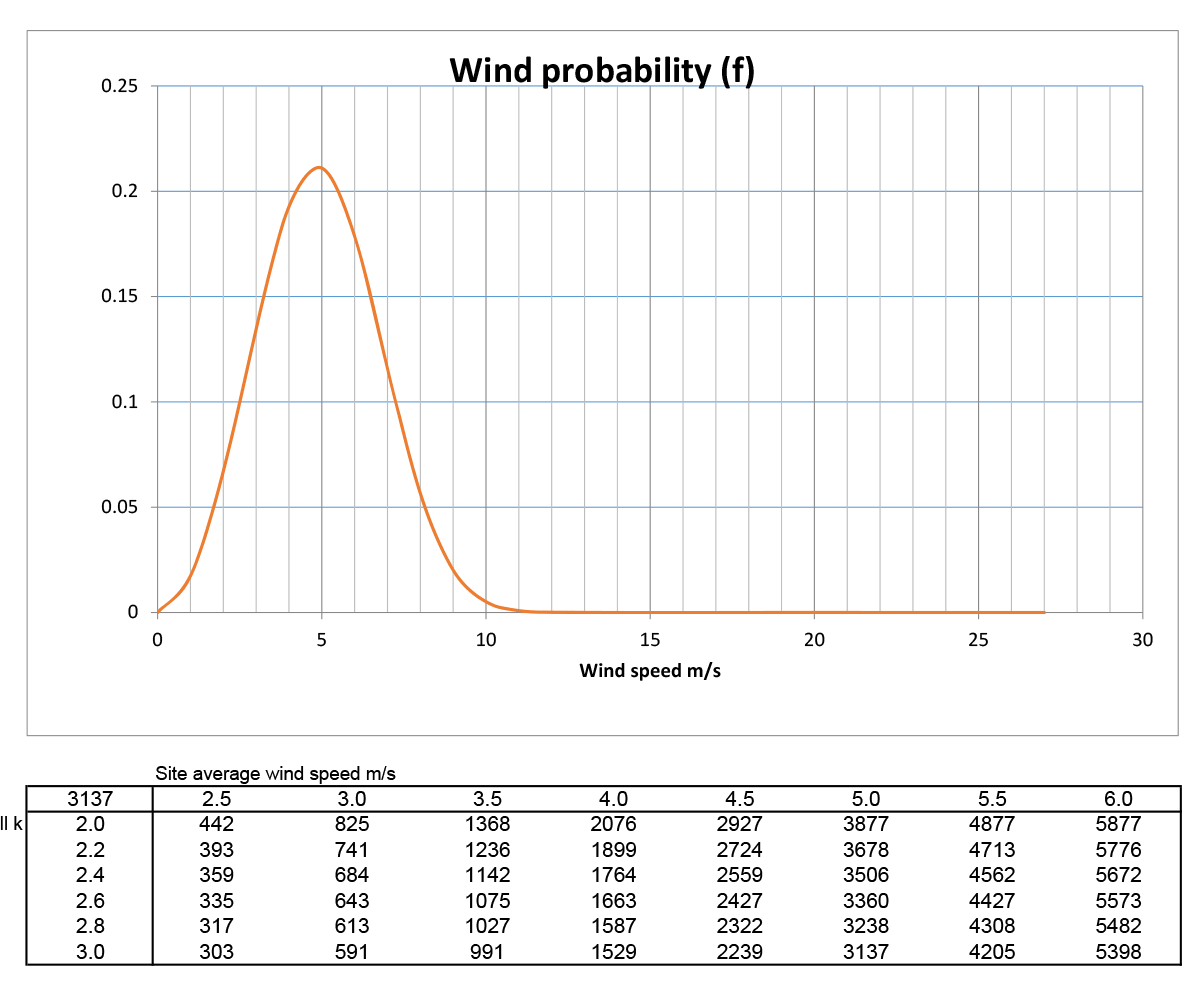

| Link to power curve and energy estimate @ 5 m/s | Generic 5 m/s |
| Control system | Powerhouse Wind electronic control |
| Turbine top of tower mass | 75kg |
| Min. recommended tower height | 8m |
| System price (turbine, tower, controller and inverter or battery charger) | NZ$17100 + GST |
Click on images below to enlarge:
